Description
Material: Steel
Function: For use in concrete filled metal deck (20 GA. min.) assemblies (i.e. pan deck, Q-deck) applications. After installation, the threaded male hanger of the insert protrudes below the surface of the deck. The threaded bolt offers adjustability for precise height requirements and guarantees the minimum embedment depth. The longer plate enables a variety of installation locations across the deck. Pre-mounted drill screws included for installation.
Approvals: International Code Council, Evaluation Service (ICC-ES), ESR-3958 for concrete, for 3/8″-16 thru 5/8″-11”anchor sizes. Approved for seismic and wind loading.
UL (Underwriters Laboratories) Listed
FM (Factory Mutual) Approved
Finish: Plate: Plain Steel. Rod: Electro-Galvanized.

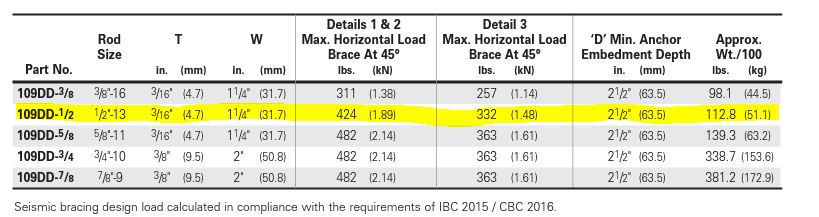

Order By: Figure number, rod size and finish. Applications Per NFPA 13 (2010): UL Listed as a component of a hanger assembly per Section 9.1.1.4.1 See dimensions and installation Detail below.
