Description
Product Details

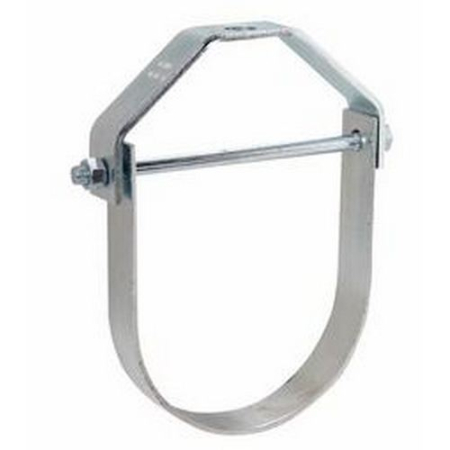

- Standard clevis hanger is recommended for the suspension of non-insulated pipe or insulated pipe with a B3151 shield.
- Pipe will not ‘pinch’ when installing.
- Swing in either direction allows pipe to easily feed thru
- Engineered design aligns bolt holes for quicker overhead installation.
- TOLCO Seismic Restraint Systems Guidelines.
- MSS SP-69 & SP-58, Type 1.
- Also available to accommodate rod schedule per National Fire Protection Association (NFPA) Pamphlet 13
Documents
Specifications
ANSI Specifications: ANSI 58, ANSI 69
Adjustable: Yes
Application: Insulated Pipes, Non-Insulated Pipes
Coating: Plated
Collection: B3100 Series
Color Finish: Zinc
Color Finish Category: Greys
FM Approved: Yes
Fits Pipe Size: 8 in
Height: 1-3/4 in
Length: 12-3/4 in
MSS Specifications: MSS SP-58, MSS SP-69
Material: Steel
Origin: Domestic
Product Type: Clevis Hanger
Rod Size In : 3/4 in
Size: 3/4 in-10
Temperature Range: Up to 650 Deg F
UL Listed: Yes
Weight: 0.485
Width: 11 in
Work Load Limit: 2000
